General Description:

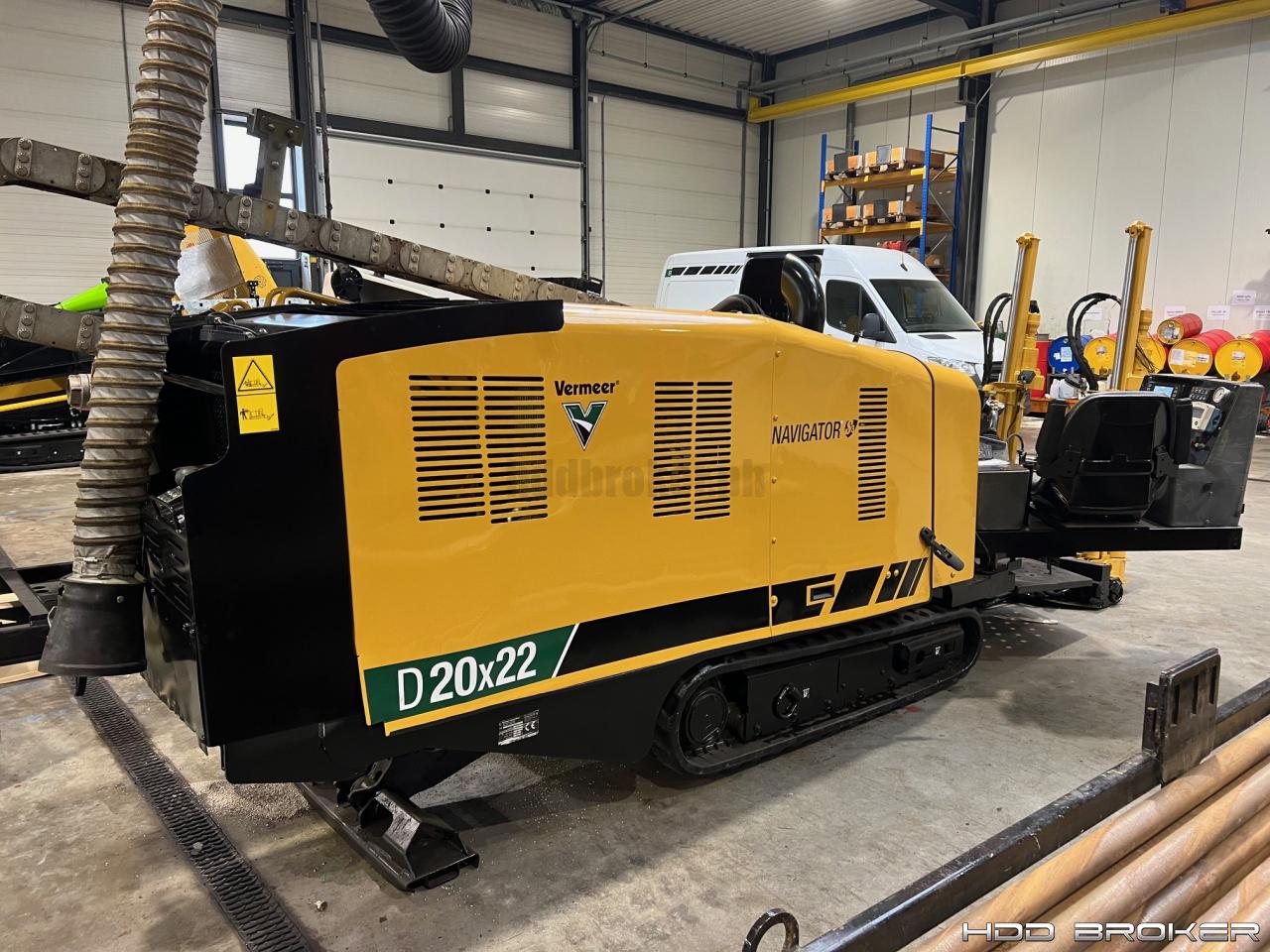

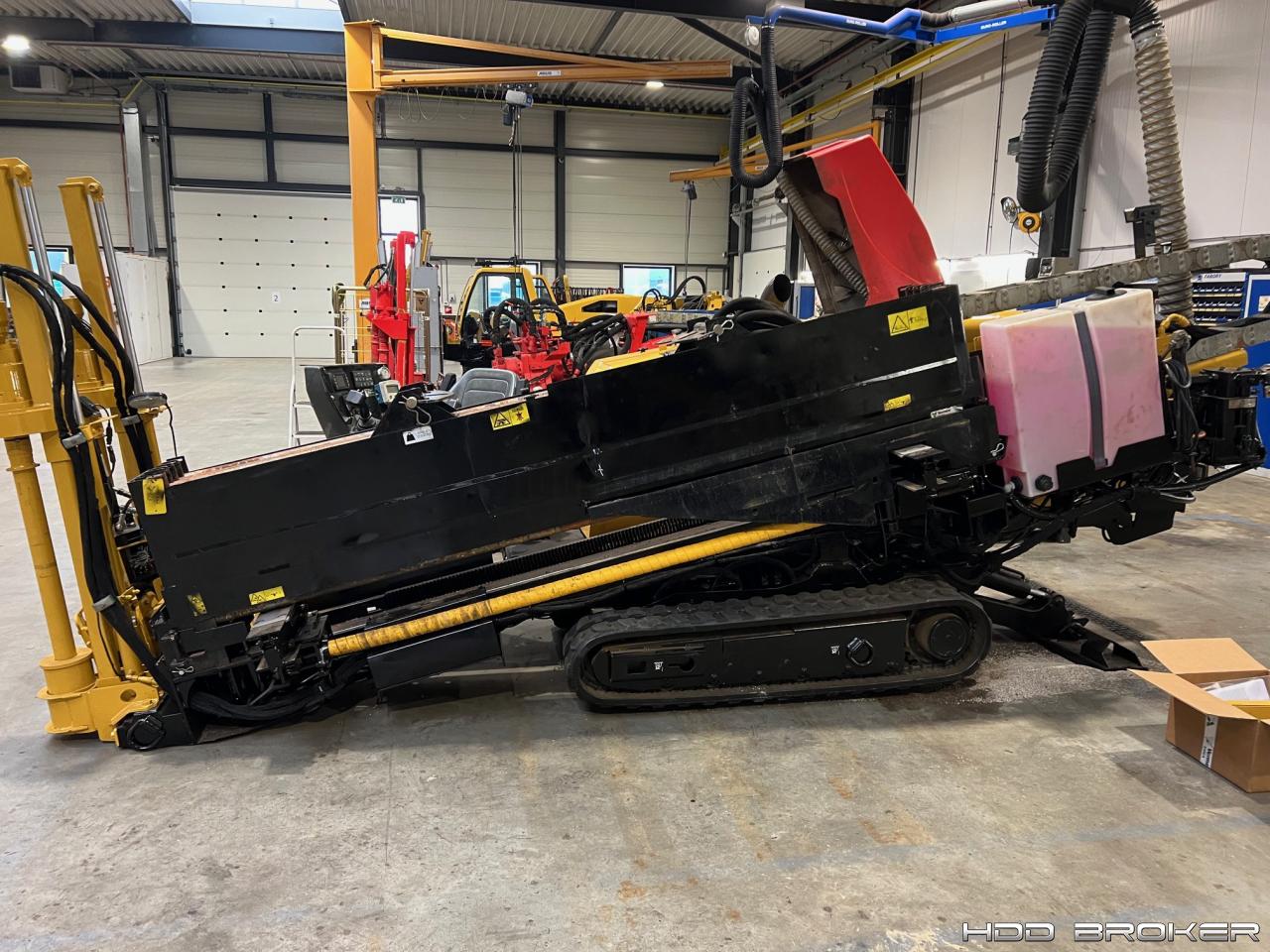

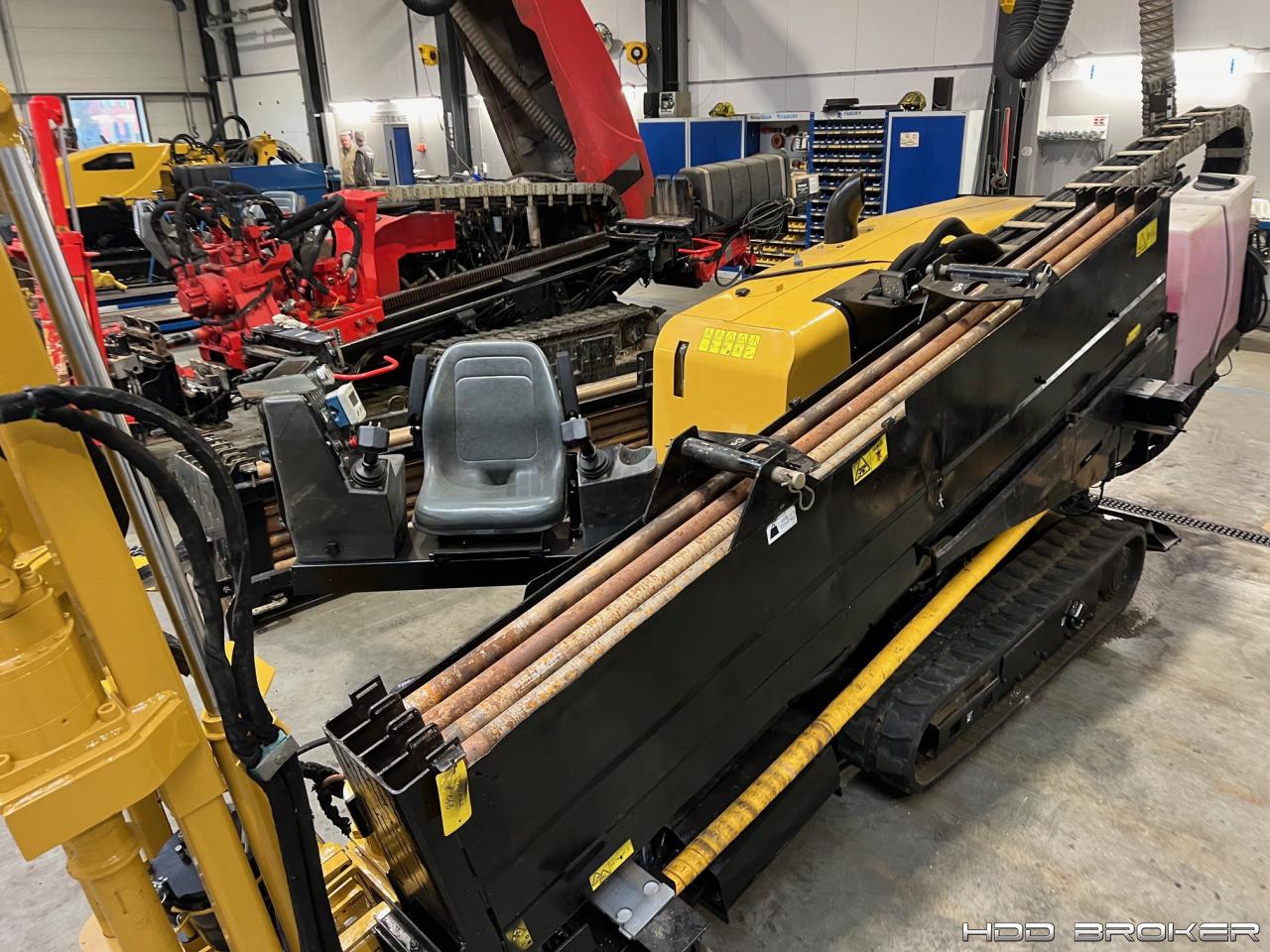

Overseas 2018 Vermeer D20x22 S3 Directional Drill:
-4,030 hours.

Pipe:
(1) Box filled with (40) Drill Rods (120 meters total):
-Length: 3.05 meter
-Pipe Diameter: 4.8 cm
-Weight: 23 kg
-Minimum Radius: 30 meter

Recent Work/Modifications:
Seller States:
-Completely inspected and tested by Vermeer.
-Repair and test all relevant systems such as the engine, the electrical system, the hydraulic system, all mechanics and the overall functions and details.
-Followed Vermeer guidelines and using only original Vermeer parts.
-Equipment is sold with detailed inspection documents.
-Anything in need of repair will be taken care of at no additional charge!

Additional Information:
DIMENSIONS
-Length: 510 cm
-Width: 120 cm
-Height: 198 cm
-Weight: 5 ton

OPERATIONAL
-Maximum Torque: 3050 Nm
-Maximum RPM: 257
-Pull Force: 9 ton
-Travel Speed: 5.3 km/hr

STANDARD
-Rack and Pinion System for the Rotation Gearbox
-Automatic Rod Loading System

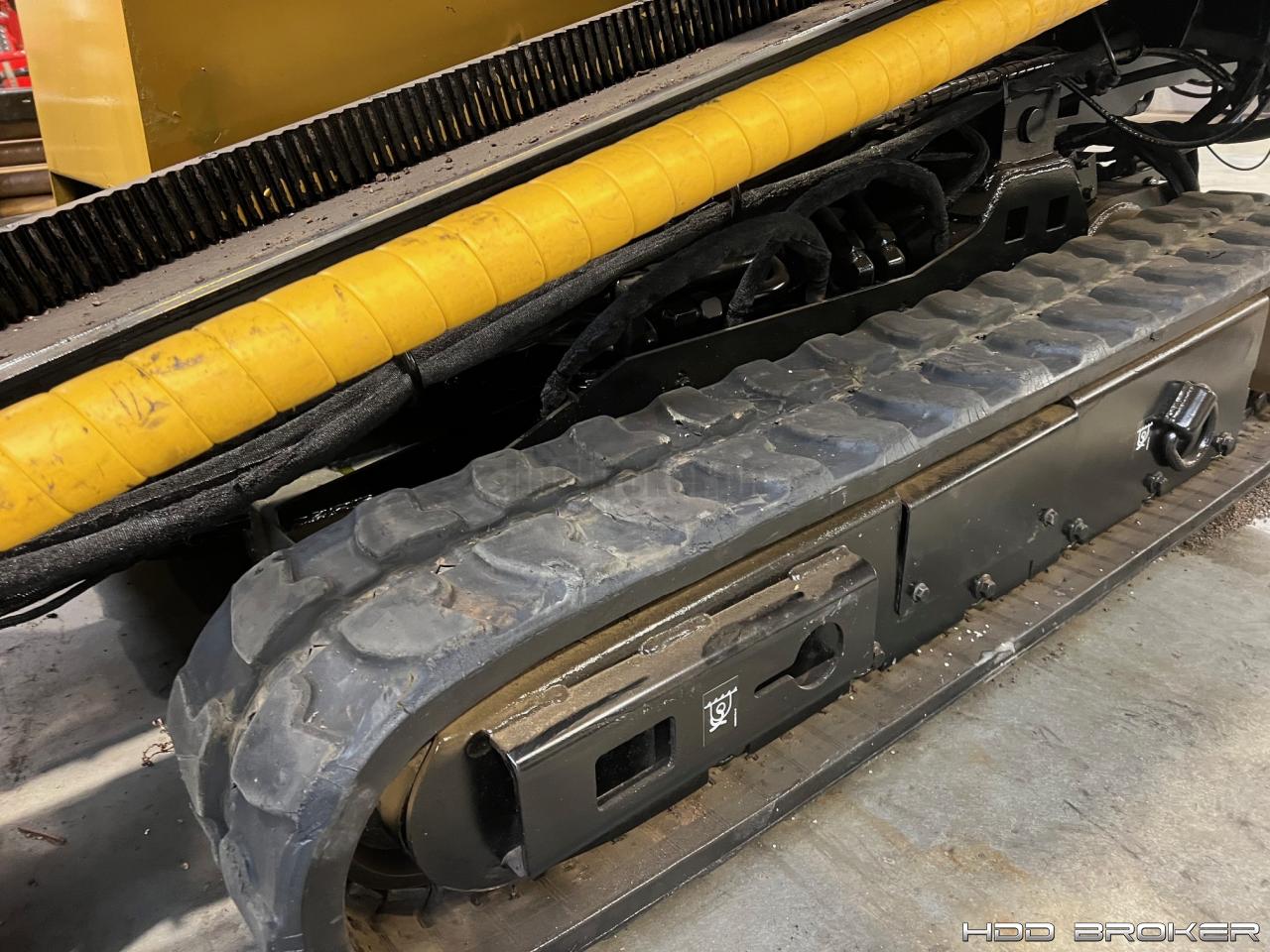

-Rubber Tracks
-Automatic Anchoring System
-Lighting
-Rod Greasing System
-Radio Remote Control

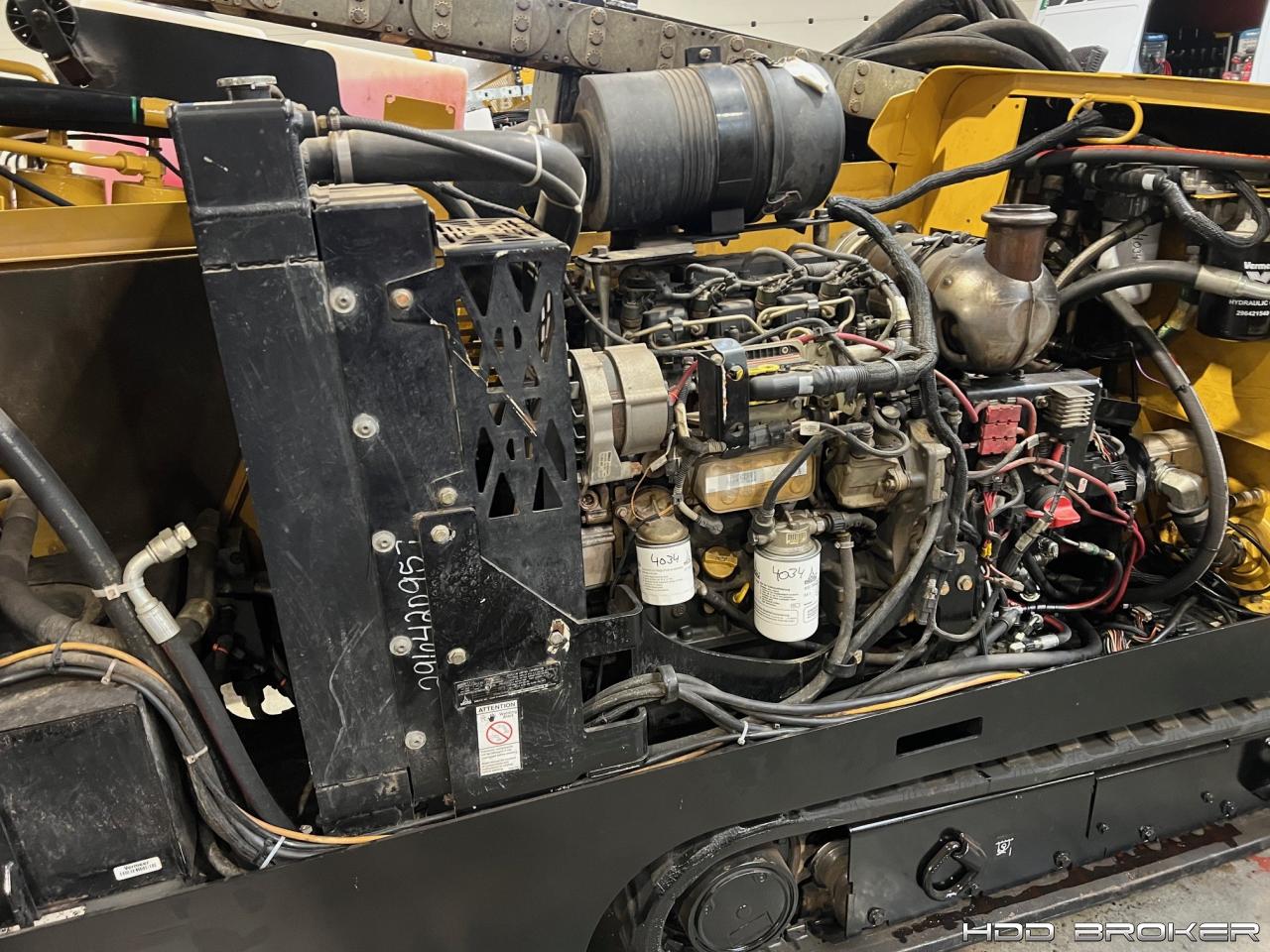

ENGINE
-Type TD2.9 Turbo Diesel
-74 HP
-2400 rpm

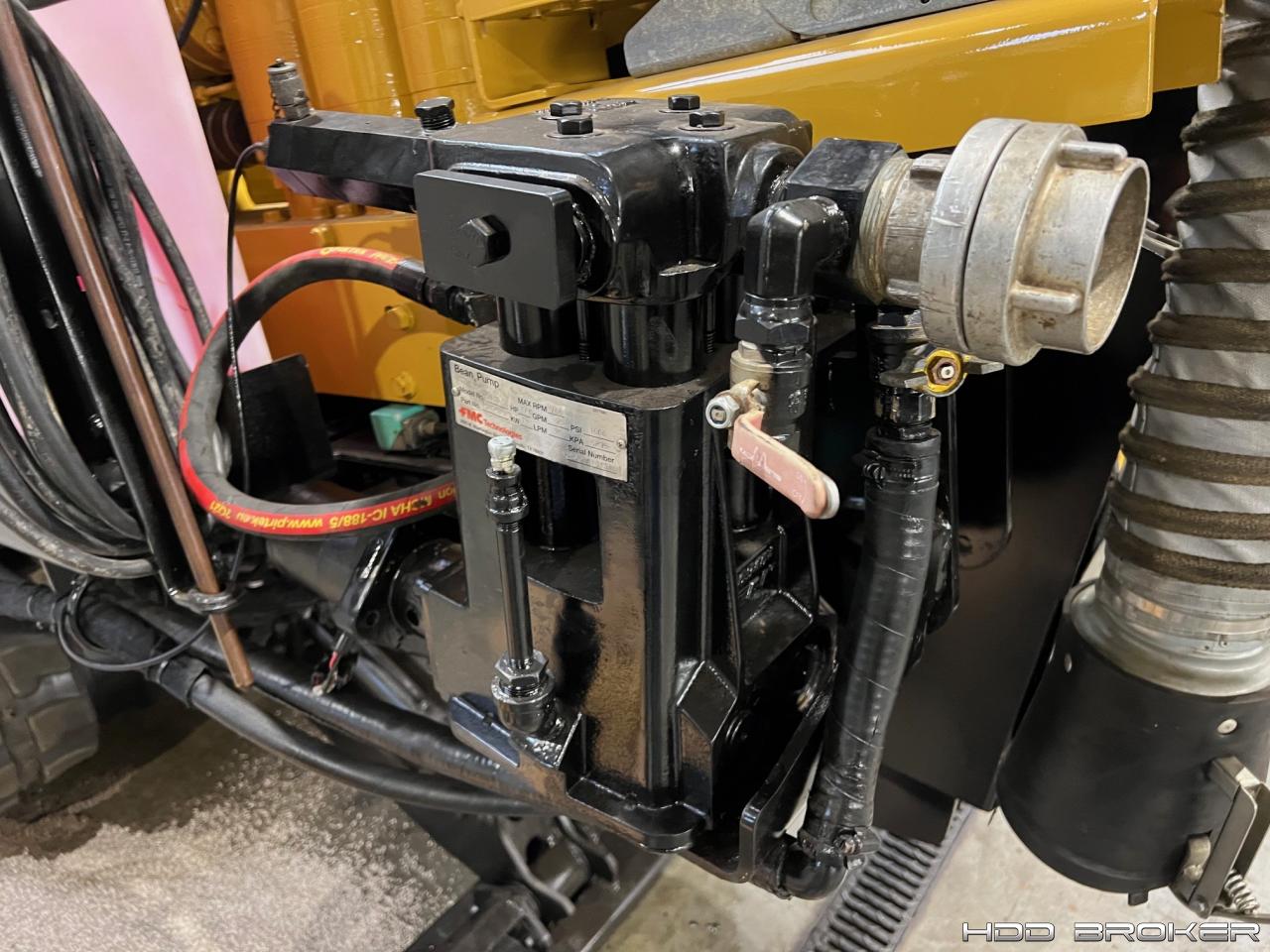

HIGH PRESSURE BENTONITE PUMP
-Maximum: 95 lpm
-Maximum Pressure: 69 bar

GREASING SYSTEM:
-Automatic Greasing System for Drill Rods

MISCELLANEOUS
-Fuel Tank: 95 liter
-Hydraulic Reservoir: 114 liter

This equipment is located in Europe. If you are an overseas client and you would like to see if this equipment would be cost effective to have shipped to your country, please contact our office and we will provide you a free shipping quote. Changes in currency rates could affect the final asking price. Please talk to one of our sales people if you have more questions about how currencies relate to the buying and selling of equipment.
